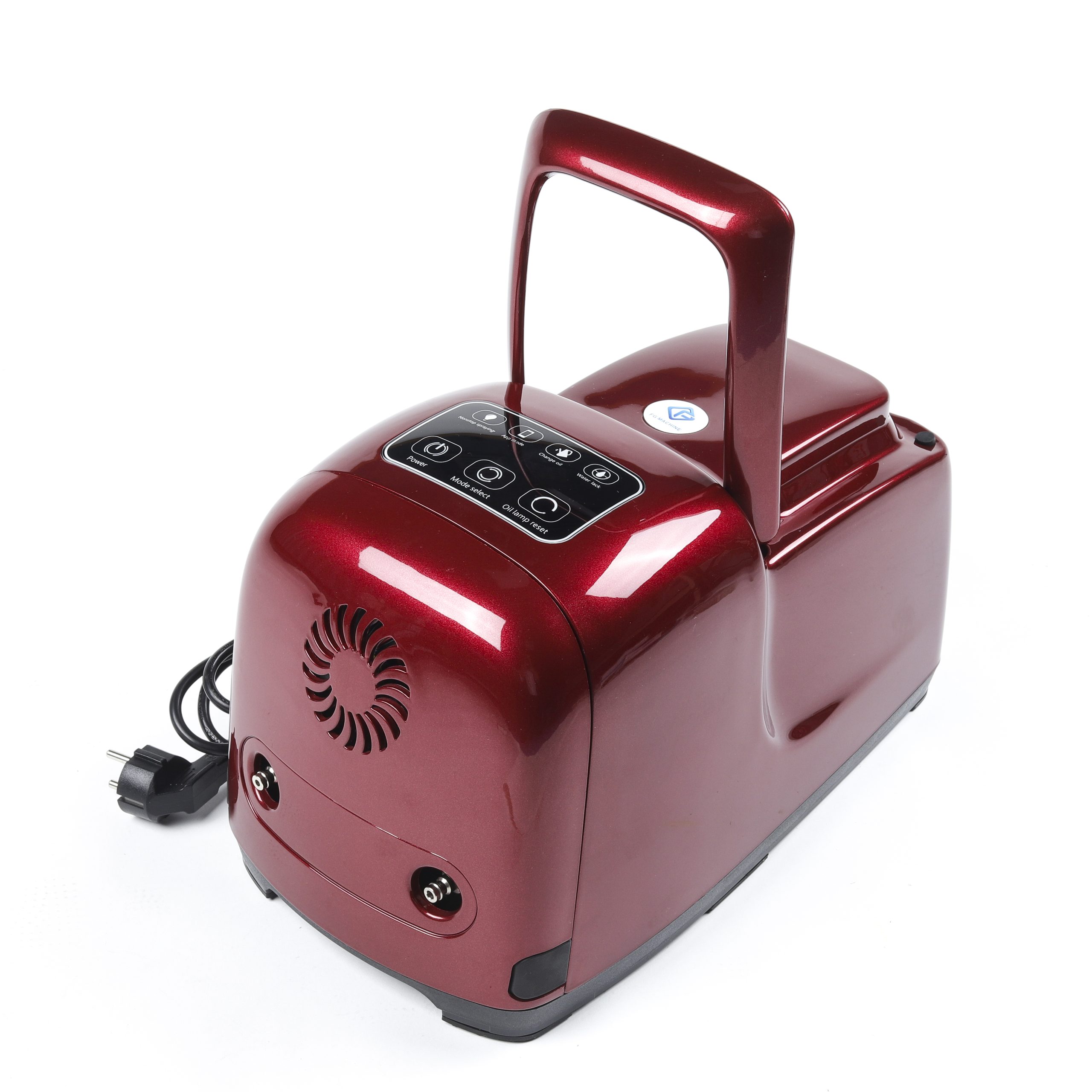

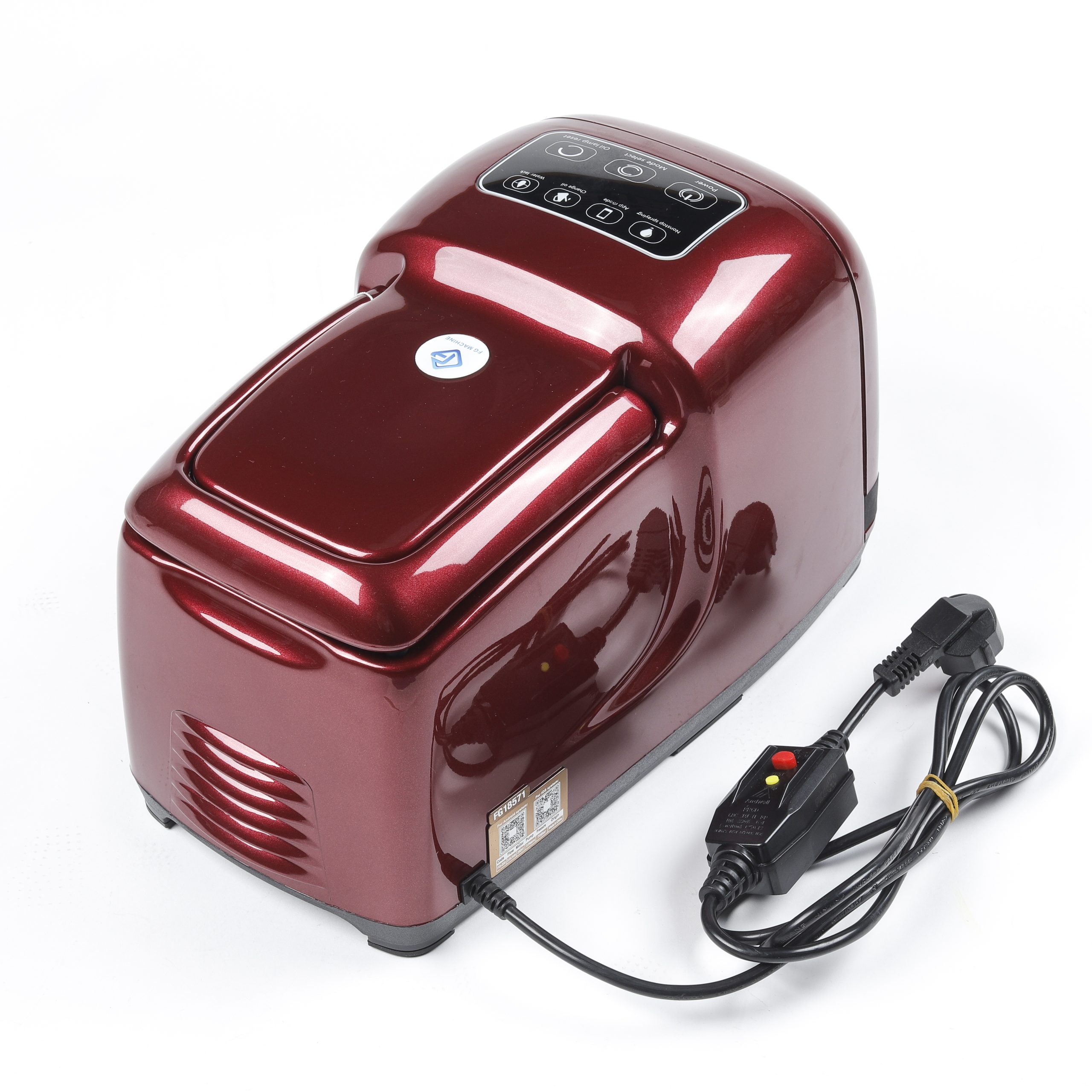

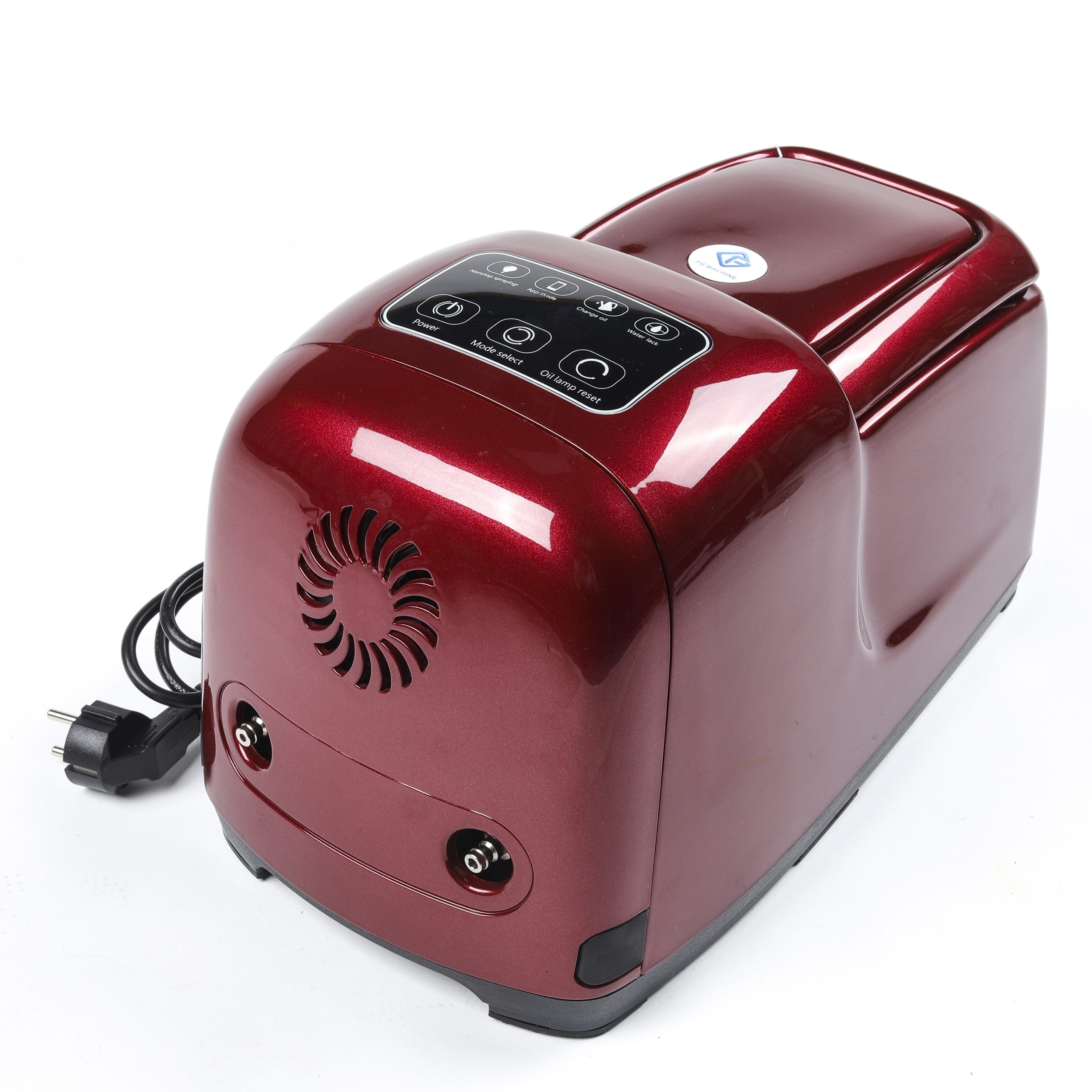

FG-200 Misting System

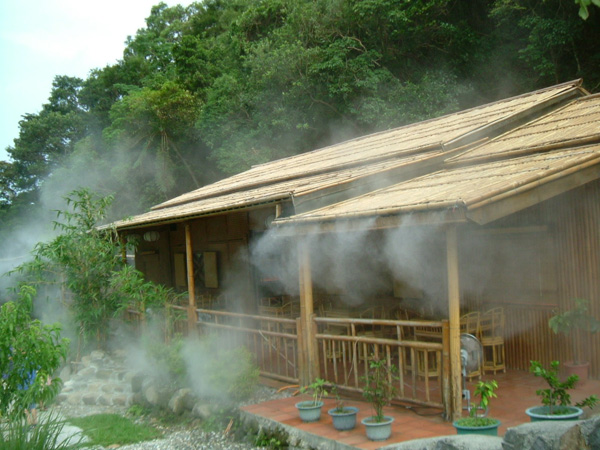

A high-pressure misting system (70 bar / 1000 PSI) with app control, touch panel, and remote control. Provides effective cooling of 6-10°C, reduces dust, and prevents mosquitoes. Ideal for restaurants, cafes, hotels, events, and commercial areas, with coverage of up to 100 square meters and a carrying capacity of 24-55 nozzles.
Ask Us About This Product
FG-200 Misting System
The FG-200 Misting System is a high-pressure misting solution (70 bar / 1000 PSI) that offers smart control via an app, touch panel, and remote control. This system is capable of effectively cooling the surrounding area by 6-10°C, reducing dust, and preventing mosquito infestations. With coverage of up to 100 square meters and a carrying capacity of 24-55 nozzles, this system is perfect for use in restaurants, cafes, hotels, events, and commercial areas.
Main Features:
- High Pressure Misting: Operates at 70 bar / 1000 PSI for effective and rapid cooling.
- Advanced Control: Conveniently adjust the mist intensity via an app, touch panel, or remote control.
- Large Capacity: Supports 24 to 55 nozzles measuring 0.15 mm each, making it suitable for cooling particularly large spaces.
- Extensive Coverage: Effectively cools an area of up to 100 square meters, making it ideal for commercial usage and events.
- Powerful Pump: Comes equipped with a strong pump that delivers 2.0 liters of water per minute, offering efficient cooling while maintaining a low operational noise level of 58dB.
- Easy Installation: Designed for simple self-installation without the need for a professional technician.
Technical Specifications
Model
FG-200
Motor
110V-240V AC
Usage
Restaurants, cafes, event gardens, commercial areas
Motor RPM
1400 / 50Hz - 1680 / 60Hz
App Control
Yes
Touch Panel
Yes
Self Assembly
Yes
Remote Control
Yes
Motor Power (W)
250
Working Noise (dB)
58
Pump Pressure (PSI)
70 bar / 1000 PSI
Water Flow (liters/minute)
2.0
Declared Cooling Area (sqm)
40-150
Effective Cooling Area (sqm)
100
Supported Nozzle Quantity (0.15 mm)
24-55 units

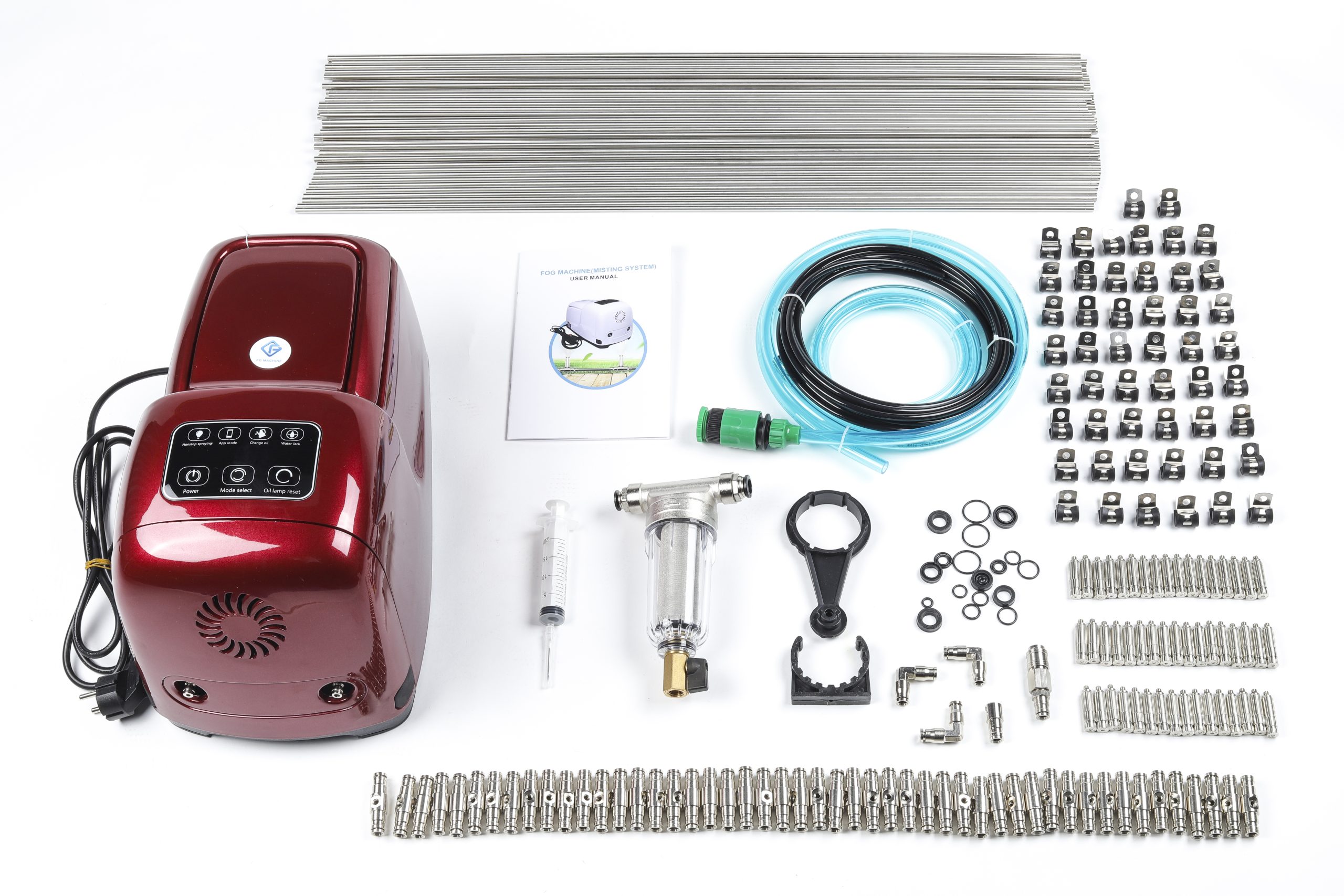

THE SYSTEM
