FG-150 Misting System
A high-pressure misting system (70 bar / 1000 PSI) with app control, touch panel, and remote control. Provides effective cooling of 6-10°C, reduces dust, and prevents mosquitoes. Ideal for restaurants, coffee shops, large gardens, and commercial areas, with coverage of up to 80 square meters and a carrying capacity of 16-40 nozzles.
Ask Us About This Product
FG-150 Misting System

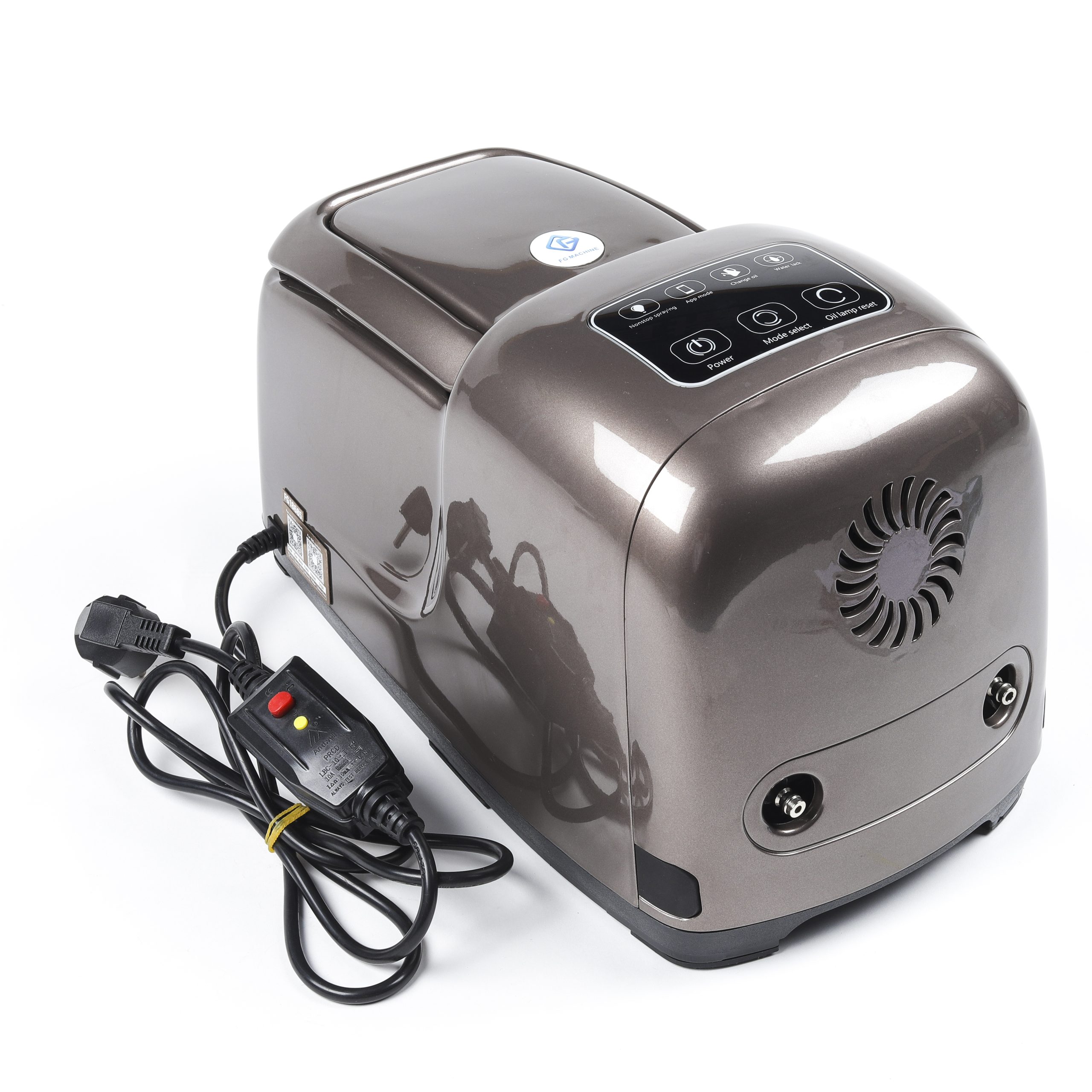

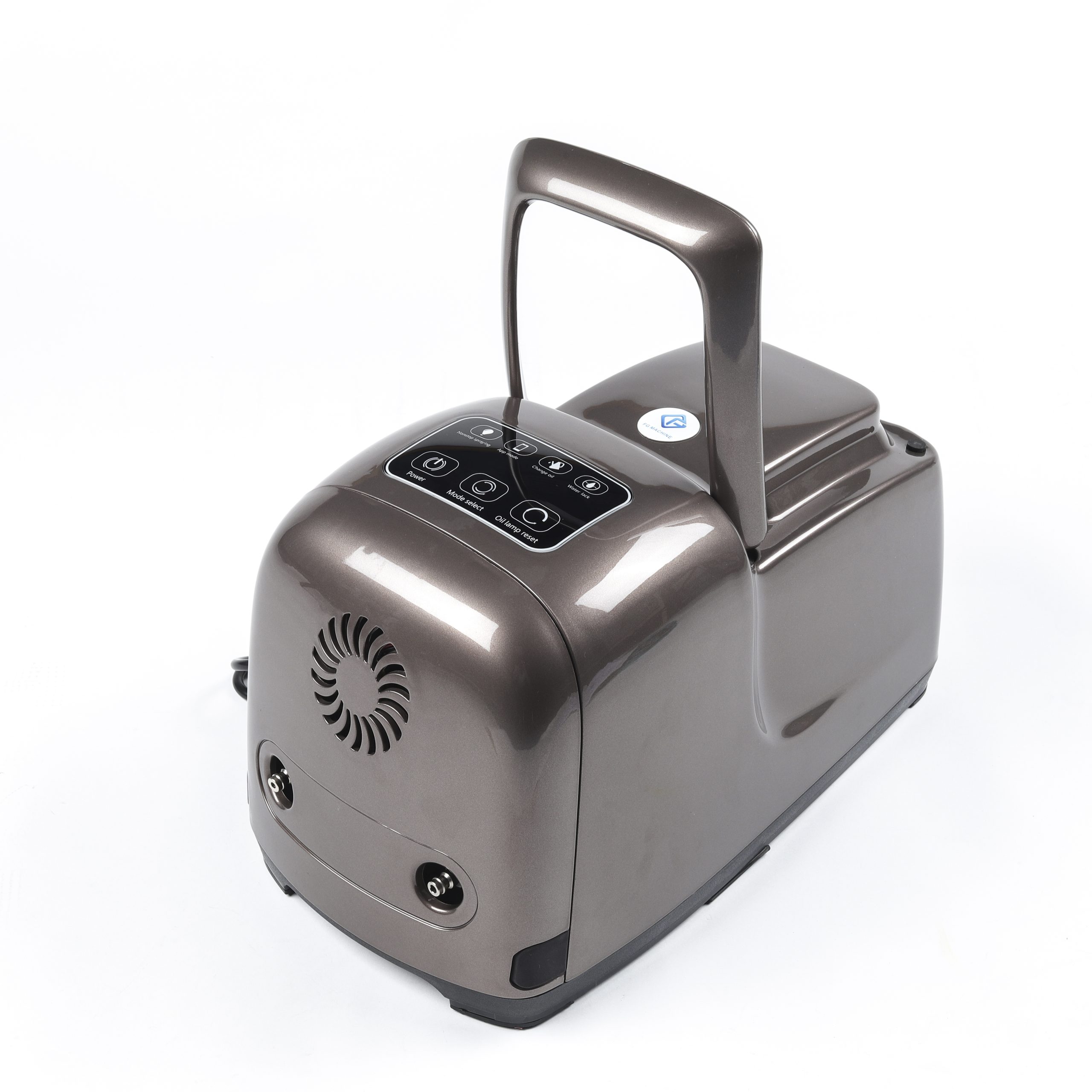

The FG-150 Misting System is a high-pressure misting system (70 bar / 1000 PSI) offering smart control features such as app control, touch panel, and remote control. It delivers an effective temperature drop of 6-10°C, dust reduction, and mosquito prevention, making it a perfect choice for restaurants, coffee shops, large gardens, and commercial areas. It boasts a coverage area of up to 80 square meters and a carrying capacity of 16-40 nozzles.
Main Features
- High-Pressure System: With a pressure of 70 bar / 1000 PSI, this system provides powerful and efficient cooling.

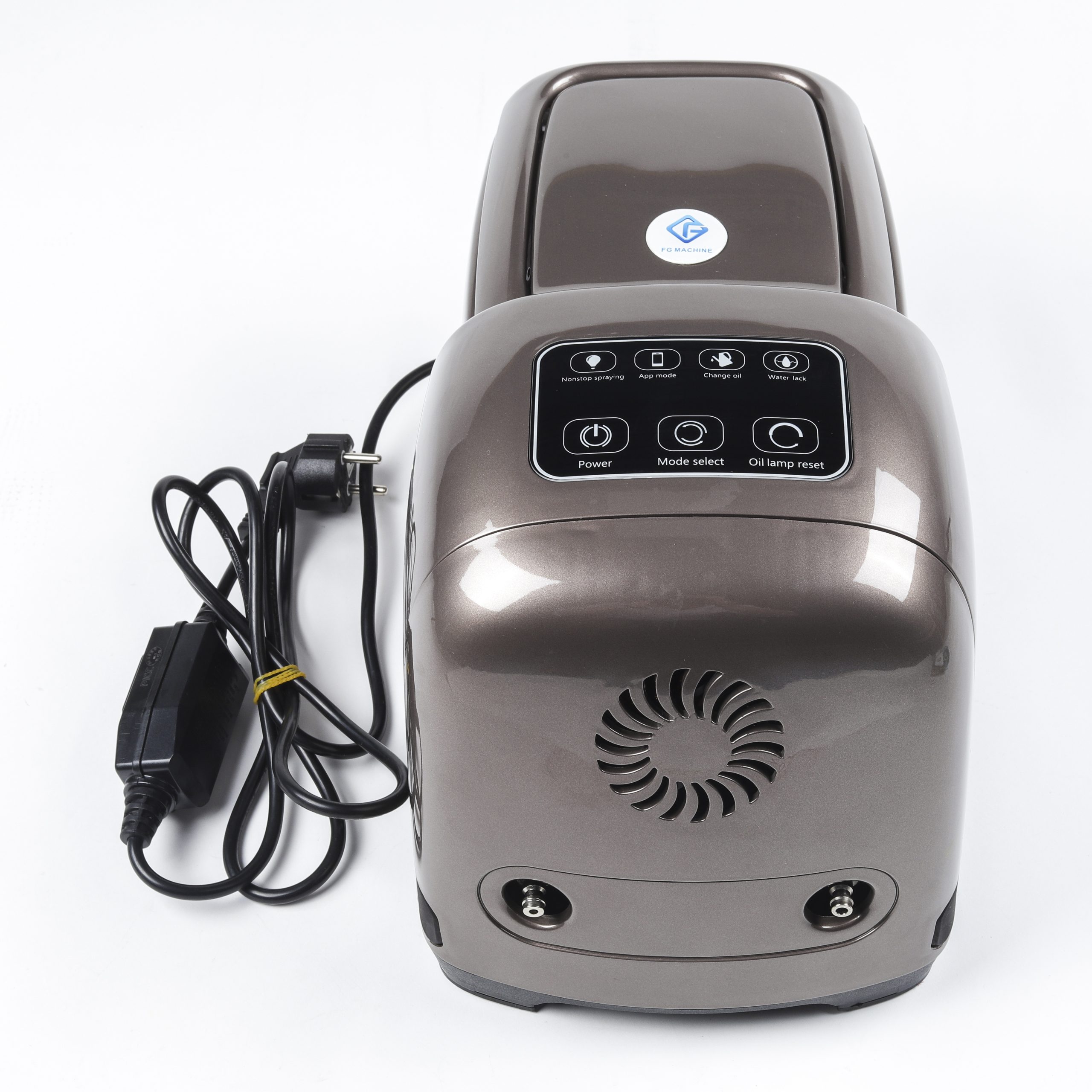

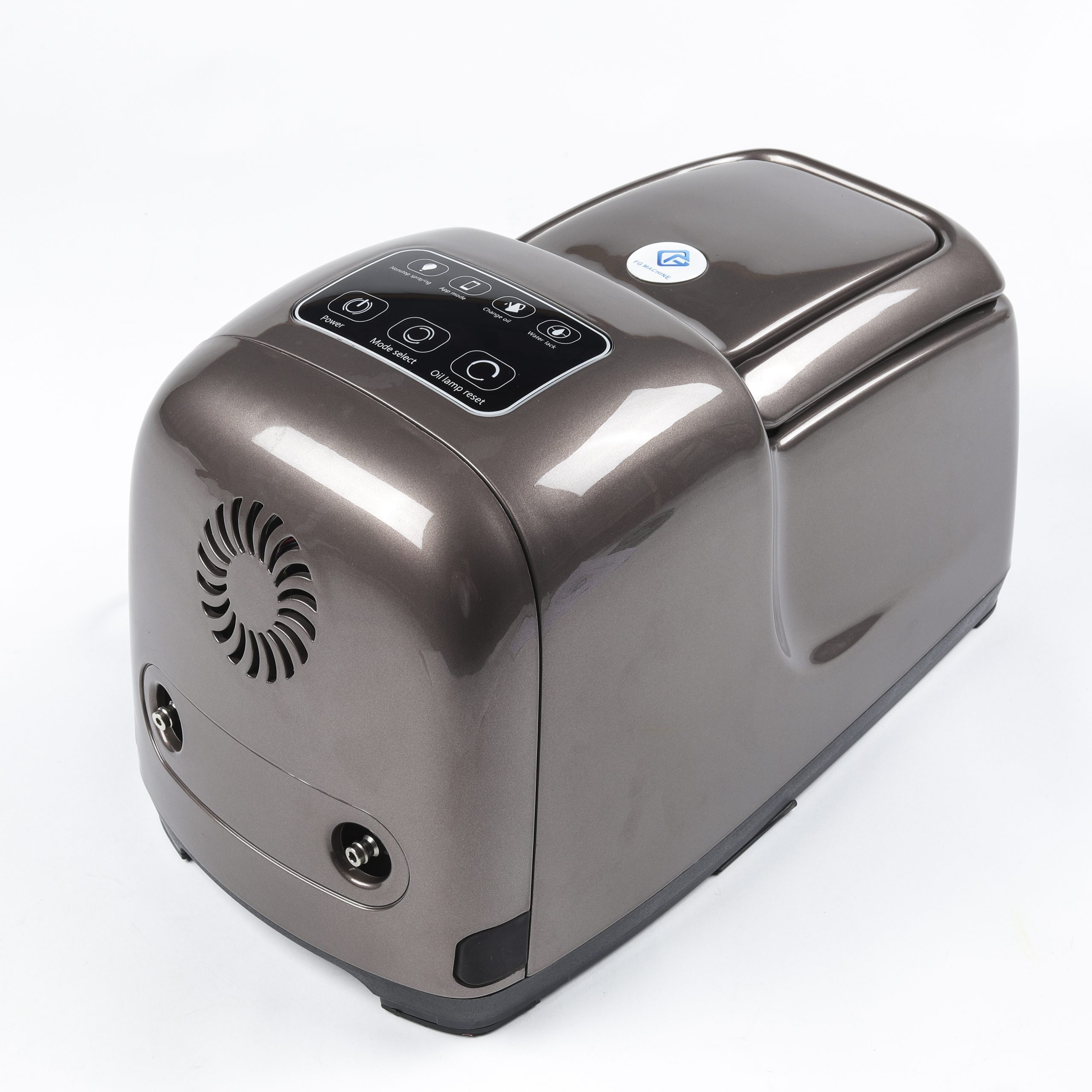

- Advanced Control: The system provides user-friendly operation via an application, touch panel, and remote control for precise adjustment of mist intensity according to the environment.
- Nozzle Capacity: The FG-150 misting system supports 16 to 40 nozzles (0.15 mm), ensuring uniform mist distribution in large spaces.
- Effective Cooling Area: The system effectively cools an area of up to 80 square meters, making it ideal for commercial use.
- Powerful Pump: The powerful pump can deliver 1.5 liters of water per minute, accompanied by a low operating noise level of 56dB.

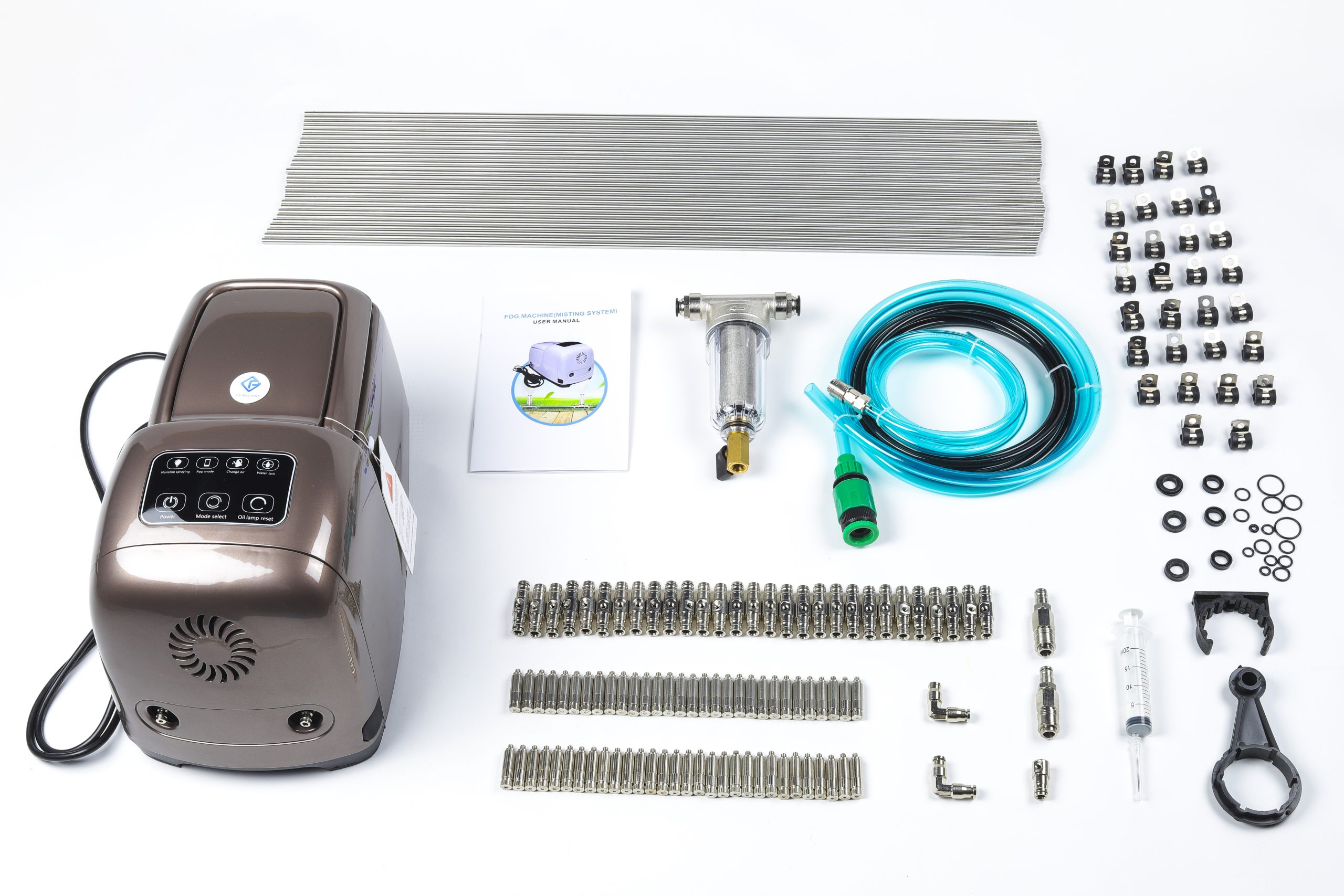

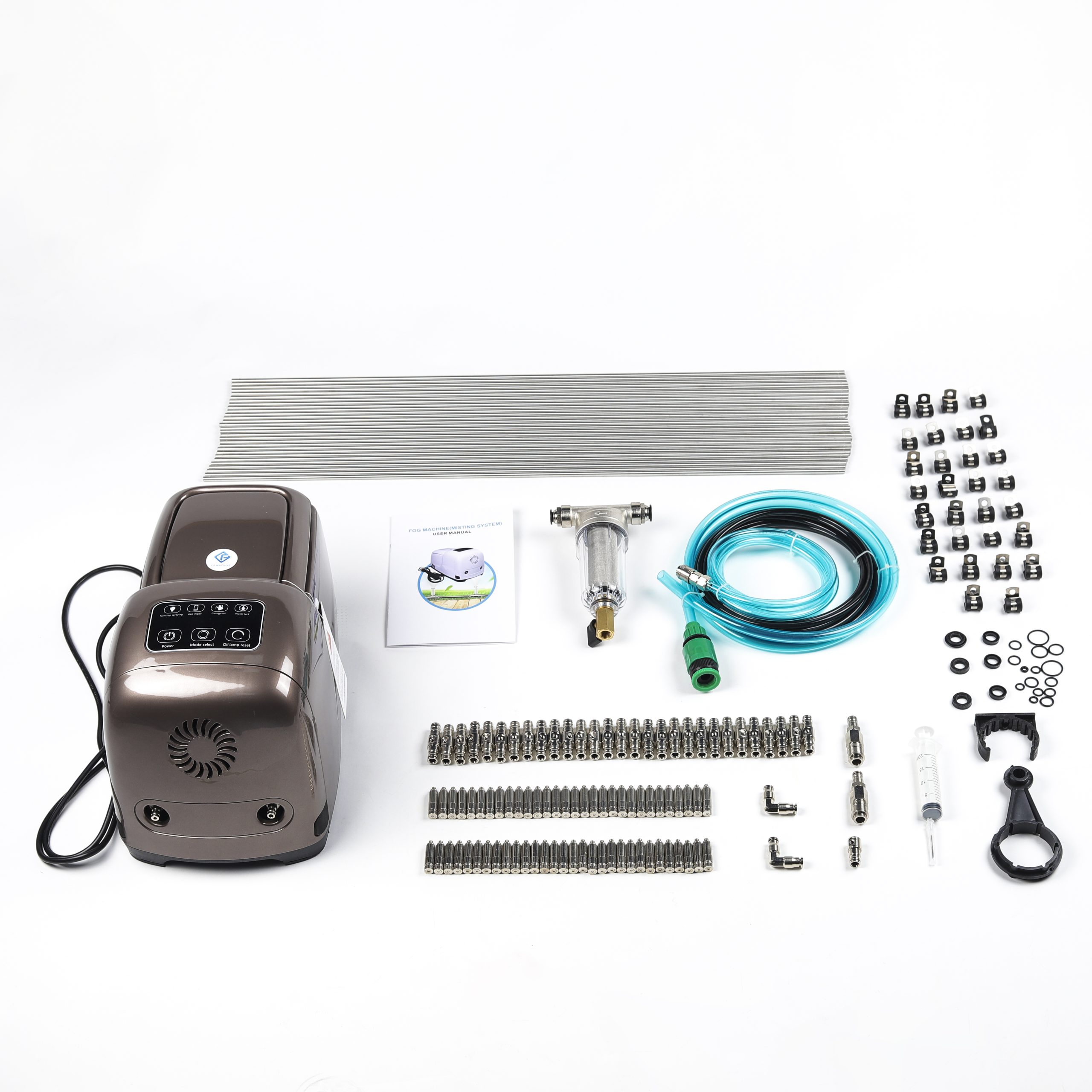

- Easy Installation: The system can be independently installed without the need for a technician, saving you time and installation costs.
Technical Specifications
Model
FG-150
Motor
110V-240V AC
Usage
Restaurants, cafes, large gardens, commercial areas
Motor RPM
1400 / 50Hz - 1680 / 60Hz
App Control
Yes
Touch Panel
Yes
Self-Assembly
Yes
Remote Control
Yes
Motor Power (W)
180
Working Noise (dB)
56
Pump Pressure (PSI)
70 bar / 1000 PSI
Water Flow (liters/minute)
1.5
Declared Cooling Area (sqm)
24-100
Effective Cooling Area (sqm)
80
Supported Nozzle Quantity (0.15 mm)
16-40 units
