Climatech
Giant Industrial Ceiling Fan - 6.5 Meter Diameter, Industrial Air circulation

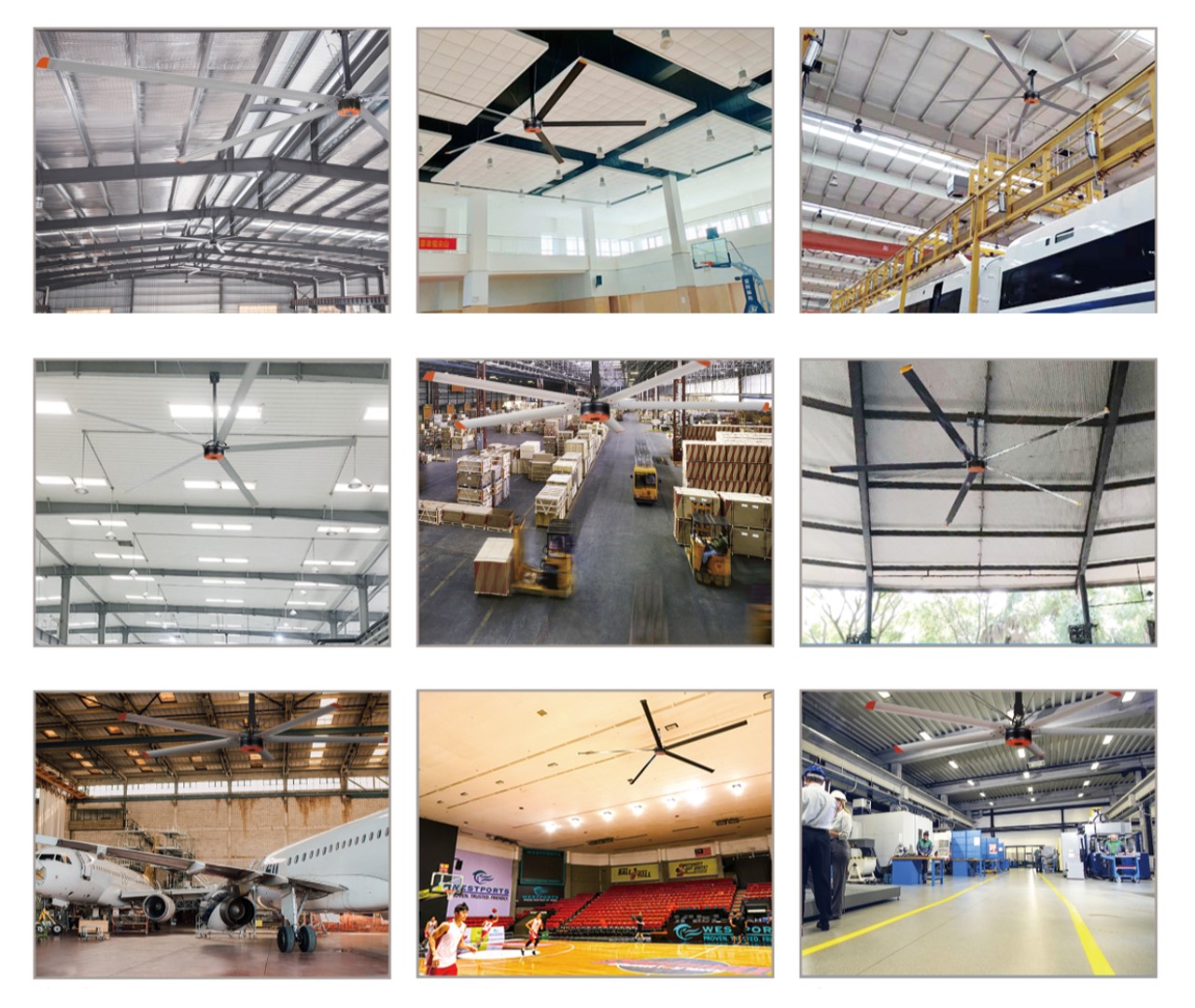

An air circulation solution for large spaces, warehouses, halls, logistics centers, agriculture, greenhouses, and barns. A particularly strong giant fan with a direct drive motor, Three-phase or single-phase electricity.
Ask Us About This Product

Giant Industrial Ceiling Fan - 6.5 Meter Diameter, Industrial Air circulation
This product offers an efficient air circulation solution for large spaces such as warehouses, halls, logistics centers, agricultural facilities, greenhouses, and barns. Designed with an immensely powerful fan and a direct drive motor, it ensures maximum air distribution with minimum energy consumption. This fan can be custom ordered for either three-phase or single-phase electricity to suit varying power requirements.
Main Features:
- Direct Drive Motor: This fan features an external motor with an advanced heat dissipation system, ensuring a low engine temperature. Its patented motor body protection prevents dust from penetrating its internal parts, while the external placement of the motor reduces noise levels. The motor functions on a permanent magnet, improving energy efficiency and extending motor lifespan.
- Aerated Polymeric Blades: The blades are constructed from an aerated polymeric material, similar to that used for helicopter blades. This makes them lightweight yet extremely durable. A specially patented aerodynamic design enables the blades to reduce turbulence and evenly disperse air across the space.
- Easy Installation: The fan is equipped with a double hanging hanger for easy and safe installation. This reinforced and universal hanger automatically adjusts the hanging angle for optimal air circulation.
- Safety Measures: High safety levels are maintained in the motor, fan parts, and installation components. It comes with high-strength connectors and overload protection in the control system.
- Product Performance: The fan generates a unidirectional natural wind that covers an exceptionally large area. The gentle, comfortable, and cool wind can cause a perceived temperature drop of 4 to 9 degrees.

Technical Specifications
Power
1,150W
Voltage
220-240V
Air Flow
14,800 CFM
Engine Type
Magnetic
Diameter (meters)
6.5
Noise Intensity (db)
39
Rotation per Minute (rpm)
70
Optimal Operating Area (m²)
650
International Safety Standards
CE, CB
Potential Operating Area (m²)
1,000
Water and Dust Resistance Standard
IP65
