Giant Industrial Ceiling Fan - 5.5 Meter Diameter, Industrial Air circulation

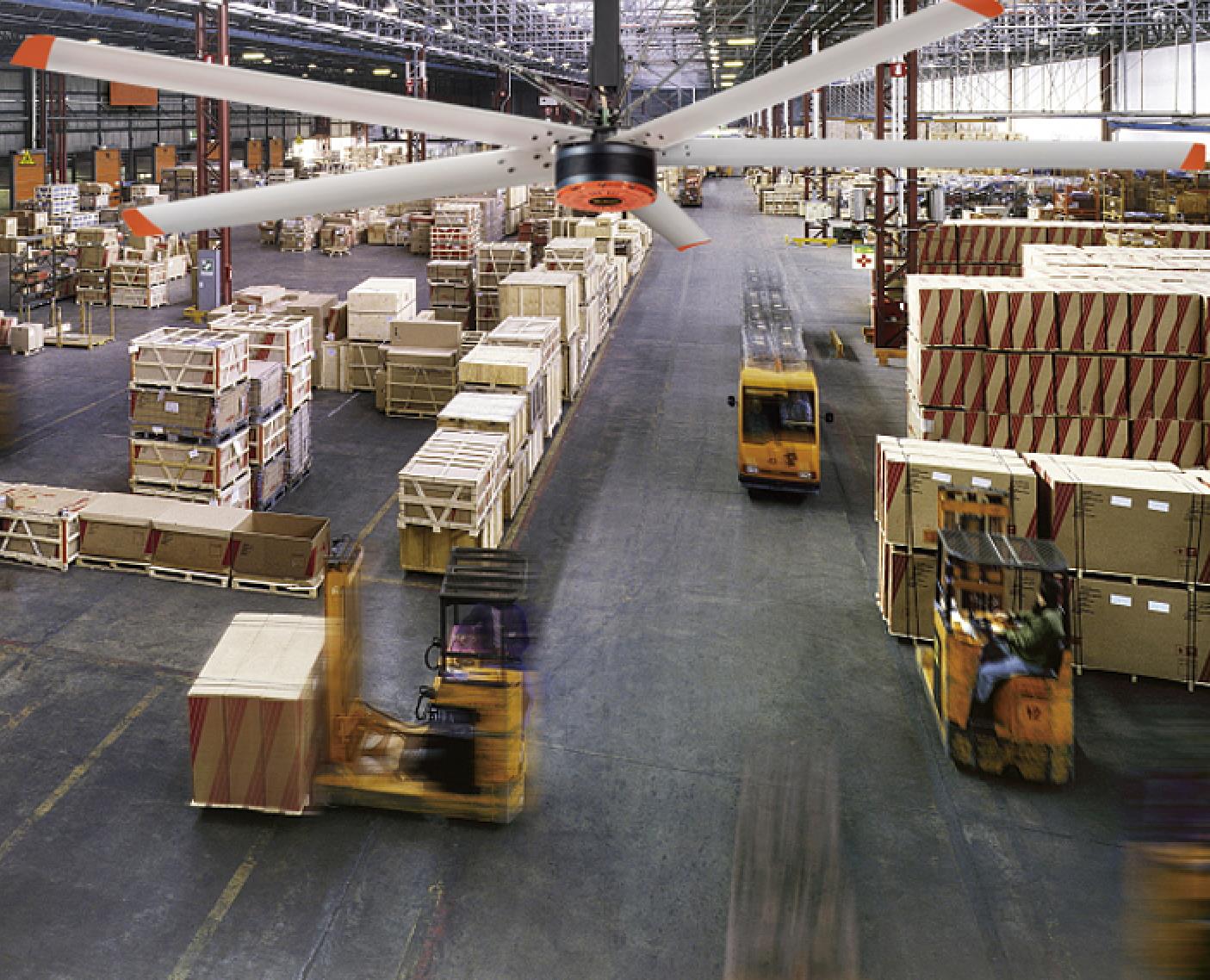

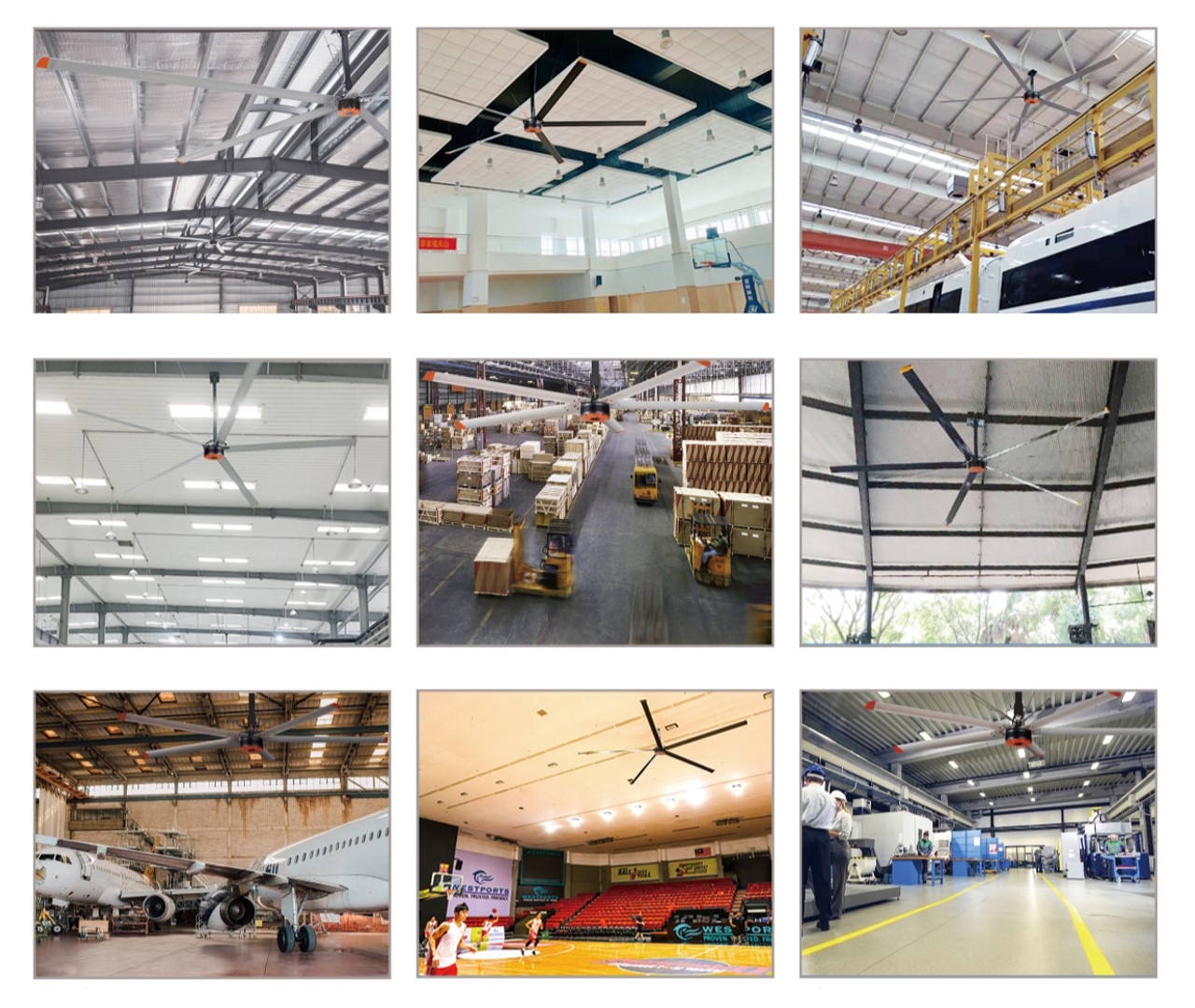

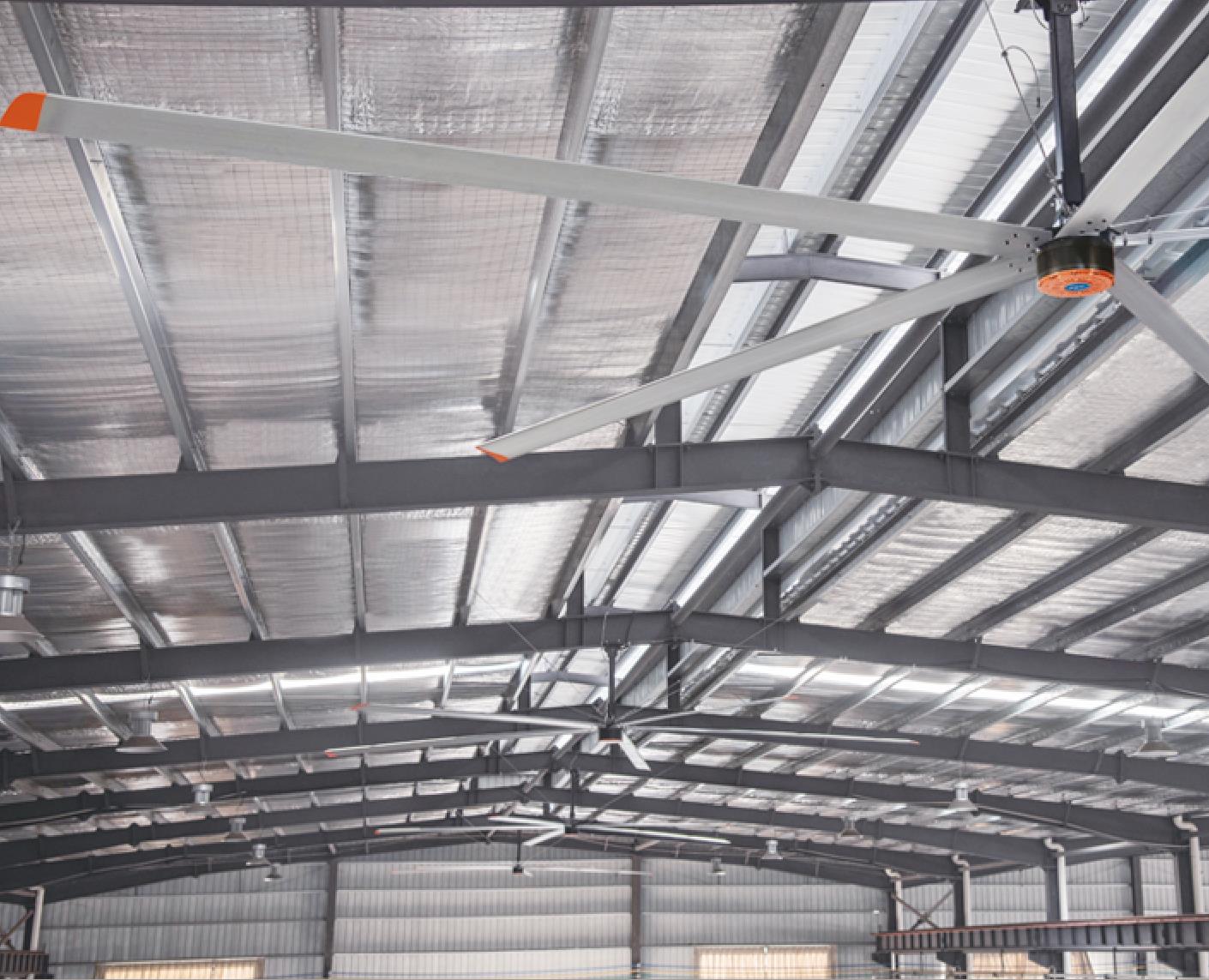

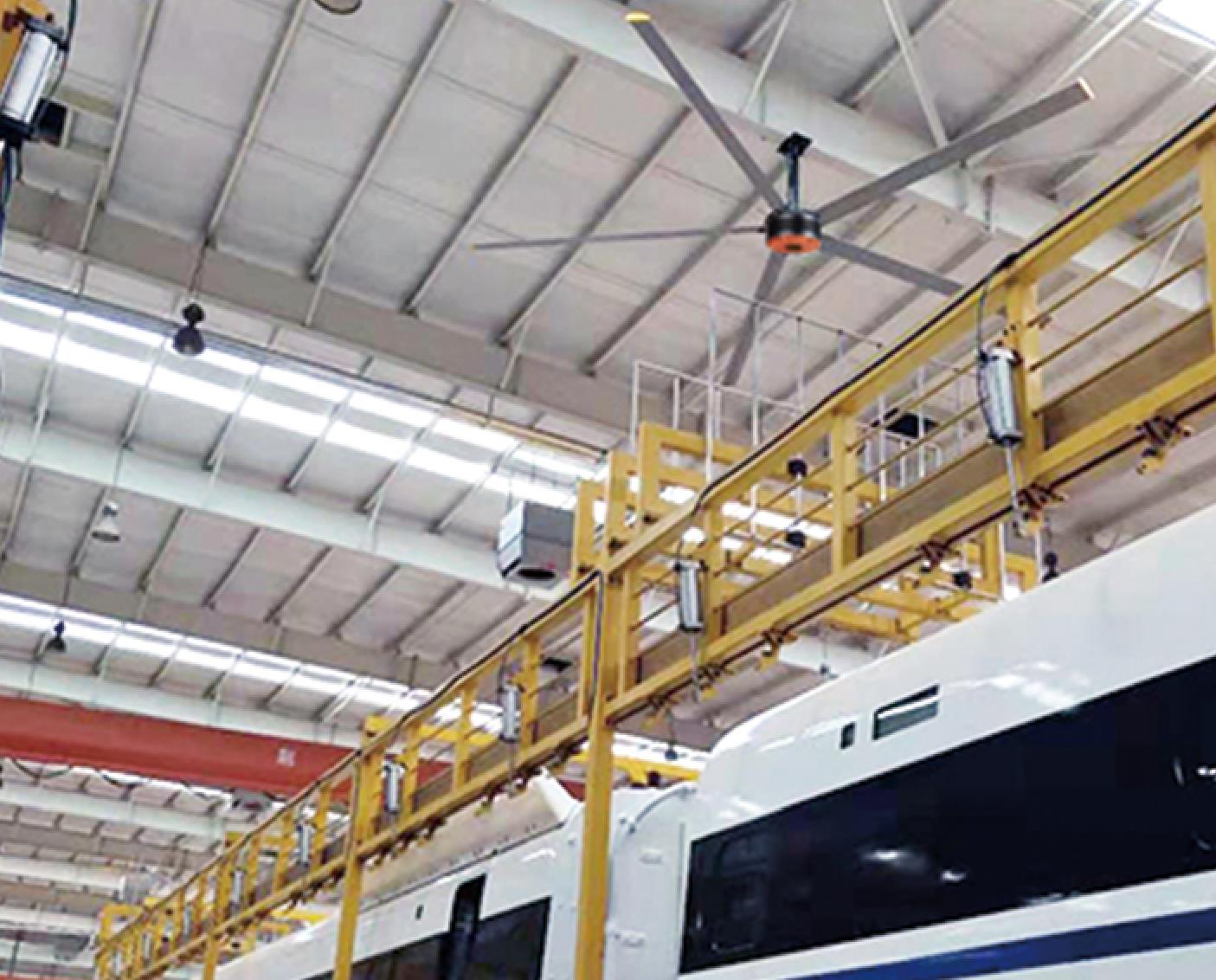

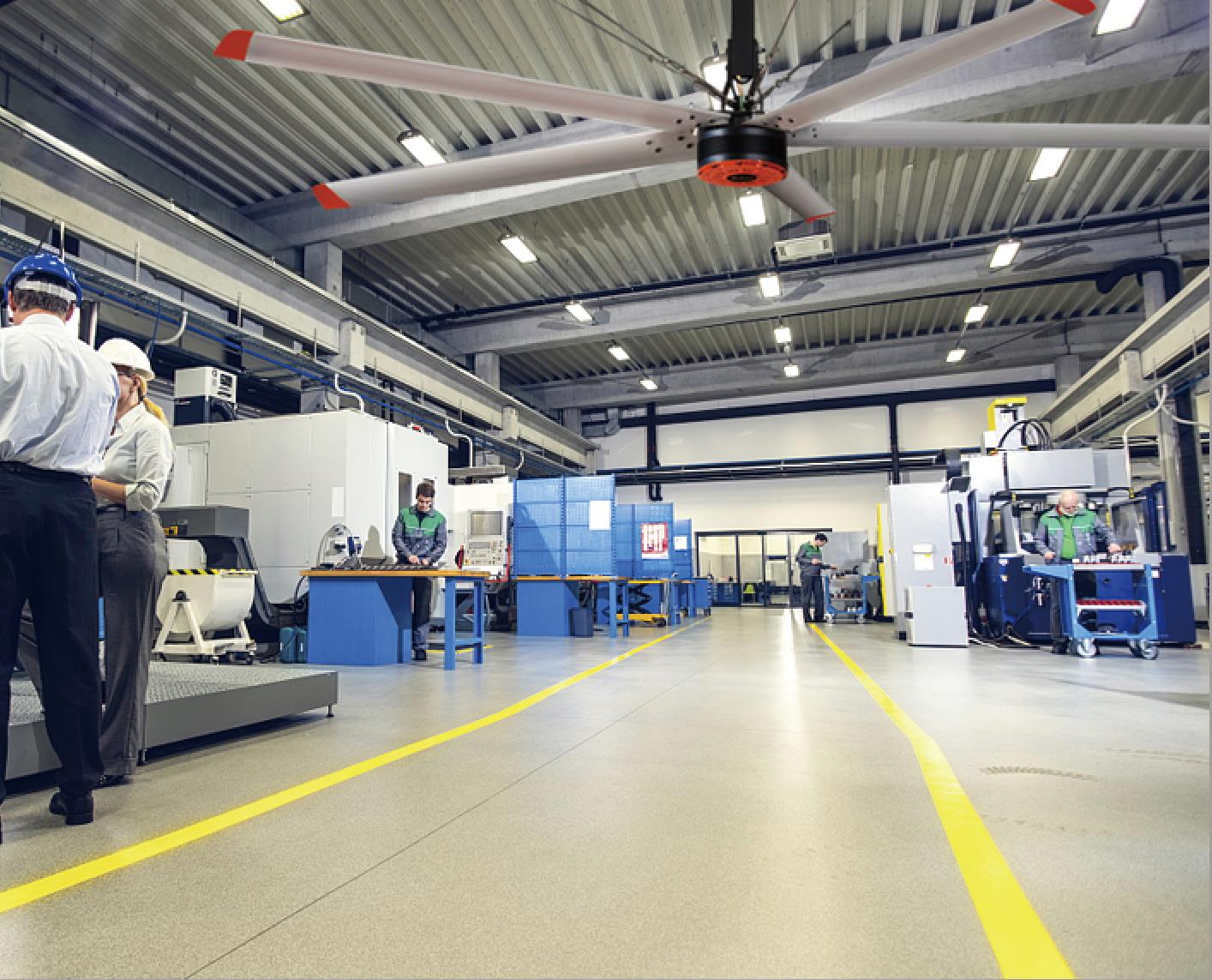

An air circulation solution for large spaces, warehouses, halls, logistics centers, agriculture, greenhouses, and barns. A particularly strong giant fan with a direct drive motor, Three-phase or single-phase electricity.

Ask Us About This Product
Giant Industrial Ceiling Fan - 5.5 Meter Diameter, Industrial Air circulation
Giant Industrial Ceiling Fan - 5.5 Meter Diameter, Industrial Air circulation - Details
Giant Industrial Ceiling Fan - 5.5 Meter Diameter, Industrial Air circulation" The Giant Industrial Ceiling Fan, with a 5.5 Meter Diameter and Industrial Air circulation, is a powerful solution for air circulation in large spaces. This fan is perfectly suited for warehouses, halls, logistics centers, agricultural structures, greenhouses, and barns. It features a compact, lightweight motor driven by a magnet for energy efficiency and reduced wear. Main Features - Direct Drive Motor: The fan is equipped with an external motor with an advanced heat dissipation system that keeps the motor's temperature low. The motor design, protected by a patent, is dustproof and its external location ensures a reduced noise level. - Versatile Electricity Options: This fan can operate on either three-phase or single-phase electricity, providing flexibility based on your electrical setup. - Aerated Polymeric Blades: The blades are made of aerated polymeric material, the same lightweight yet highly durable material used for helicopter blades. The aerodynamic design, developed under a special patent, minimizes turbulence and ensures even air distribution throughout the space. - Easy Installation: The fan comes with a double hanging hanger that is reinforced and universal, making installation easy, safe, and adjustable to the right hanging angle. - Safety and Durability: The motor, fan parts, and installation parts all adhere to high safety standards. It comes with high-strength connectors and overload protection in the control system. - Exceptional Performance: The fan provides natural wind coverage over a large area, creating a gentle, comfortable, and cool breeze that can make the temperature feel 4 to 9 degrees cooler.
Giant Industrial Ceiling Fan - 5.5 Meter Diameter, Industrial Air circulation - Technical Details

Technical Specifications

Power

850W

Voltage

220-240V

Air Flow

12,000 CFM

Motor Type

Magnetic

Diameter (meters)

5.5

Noise Intensity (db)

39

Rotation per Minute (rpm)

80

Optimal Operation Area (m²)

450

International Safety Standards

CE, CB

Potential Operation Area (m²)

800

Water and Dust Resistance Standard

IP65
